Guidewires

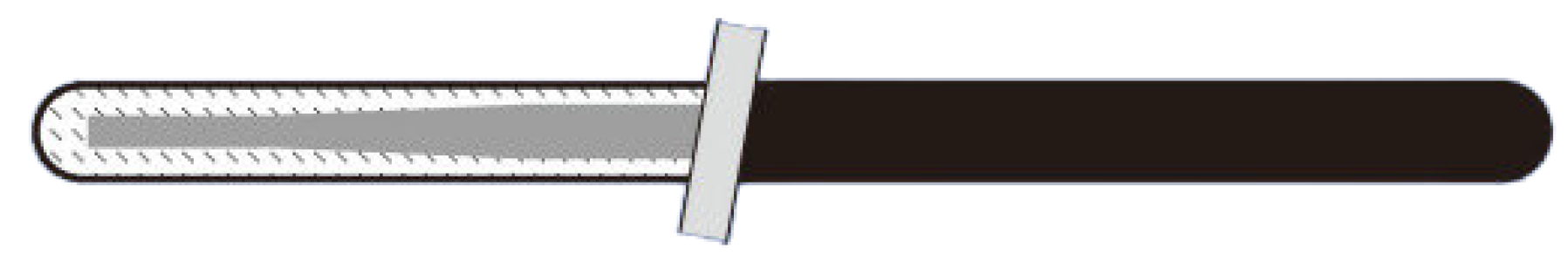

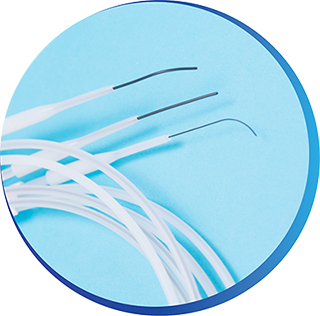

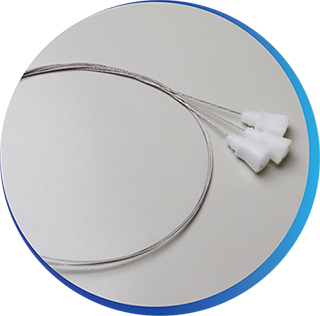

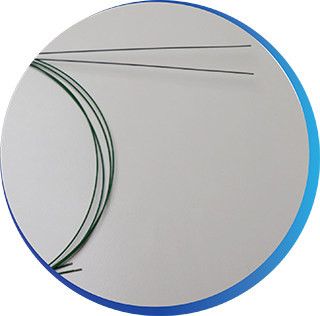

Possesses over 30 patented technologies, providing OEM solutions for various guidewires, such as hydrophilic coated guidewires (hydrophilic guidewires), zebra guidewires, hybrid zebra guidewires, nasogastric wires, PTFE guidewires, etc.

Performance Advantages

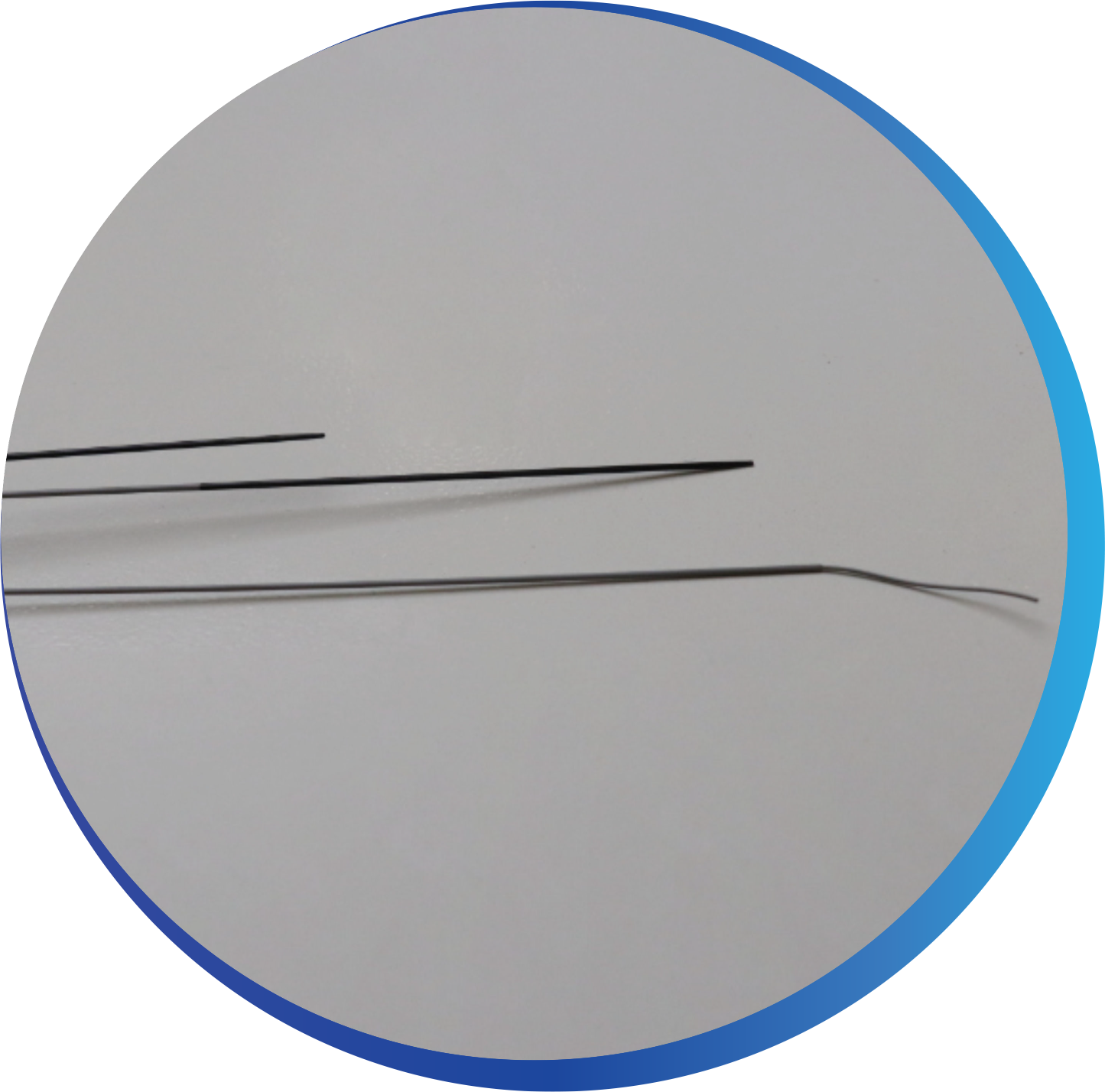

Offers OEM services for hydrophilic guidewires of various specifications suitable for intravascular and non-vascular interventional surgeries. Product performance is comparable to international first-tier brands, with a continuous coiling process from wire grinding, coating to finishing, featuring high production capacity, stable quality and low cost.

Specifications and models

Customizable


Diameter/inch	Length/cm
0.018	45, 80, 120, 150, 180, 260, 450
0.025	45, 80, 120, 150, 180, 260, 450
0.028	45, 80, 120, 150, 180, 260, 450
0.032	45, 80, 120, 150, 180, 260, 450
0.035	45, 80, 120, 150, 180, 260, 450
0.038	45, 80, 120, 150, 180, 260, 450
0.049	45, 80, 120, 150, 180, 260, 450

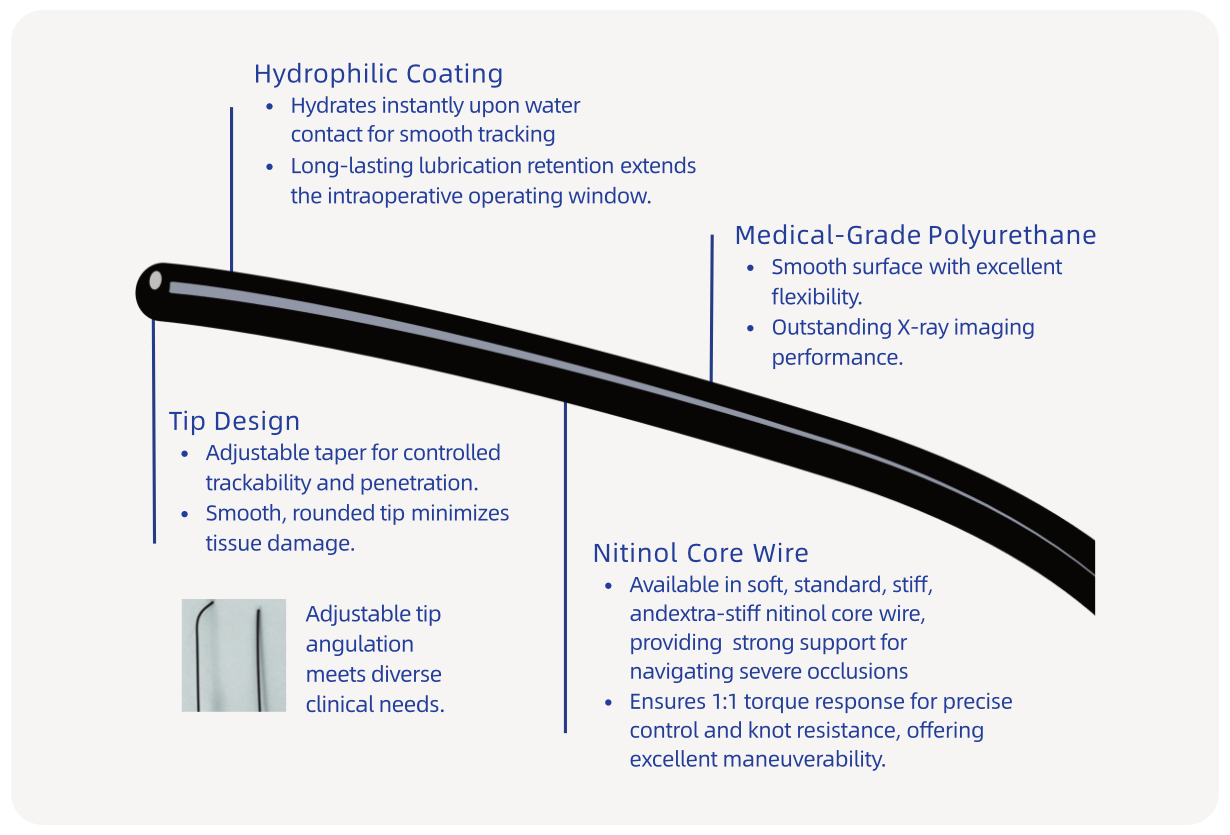

Performance advantages

Ultimate lubrication for effortless precise operation every time

Superb water locking and long-lasting moisture retention, extending intraoperative operation window

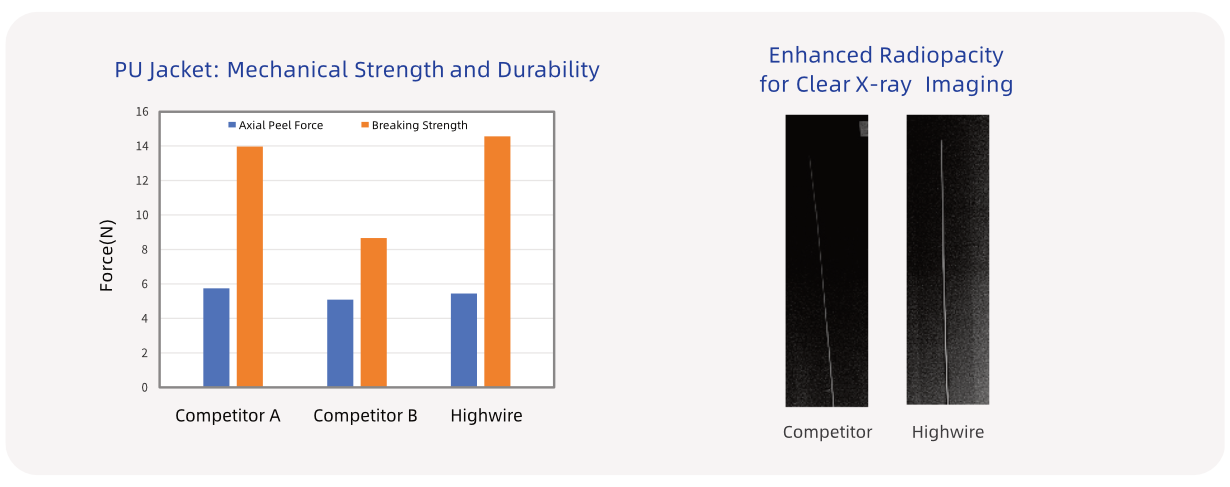

Firm PU coating and clear radiopacity

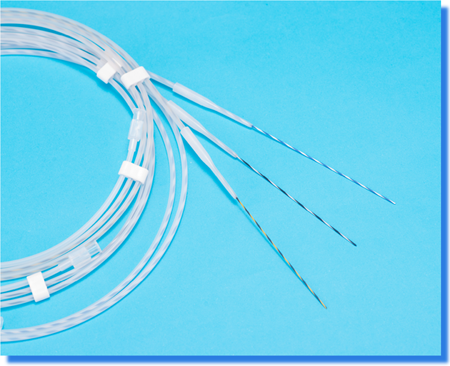

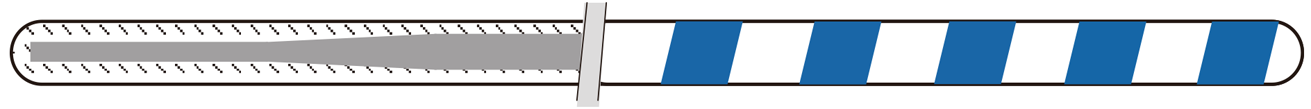

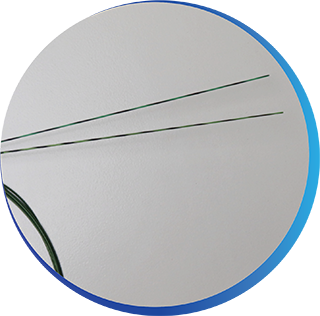

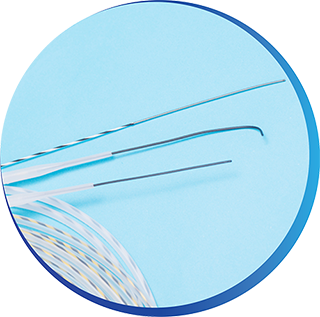

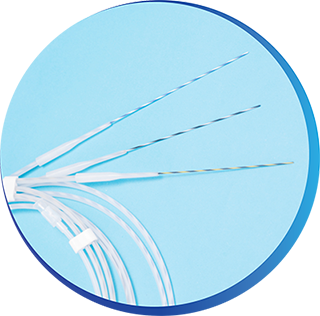

Zebra Guidewires

Smooth and rounded tip to ensure tissue safety, high passability, easy operation, and efficient access to lesions
Imported two-color threaded surface, dynamically visible under endoscope, safe and smooth

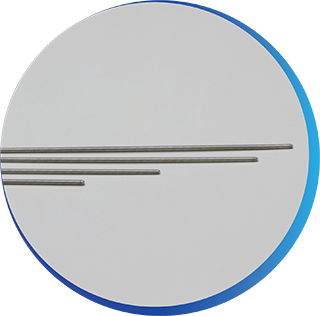

Spring-free design, usable as a safety wire; unique core wire grinding with smooth transition, balancing softness and hardness
Strong support and high flexibility of nitinol memory alloy core wire, with core wire size options meeting clinical needs

Performance Advantages

Surface	Tip Shape	Soft Tip Hardness	Guidewire Hardness
Hydrophobic material PTFE Black/White, Blue/White, Yellow/Bl ack	Straight/Bent	Standard/Soft	Standard/Reinforced Hardness

Specifications and models


Diameter/inch	Length/cm
0.025	150, 160, 180, 260, 350, 450
0.028	150, 160, 180, 260, 350, 450
0.032	150, 160, 180, 260, 350, 450
0.035	150, 160, 180, 260, 350, 450
0.038	150, 160, 180, 260, 350, 450
