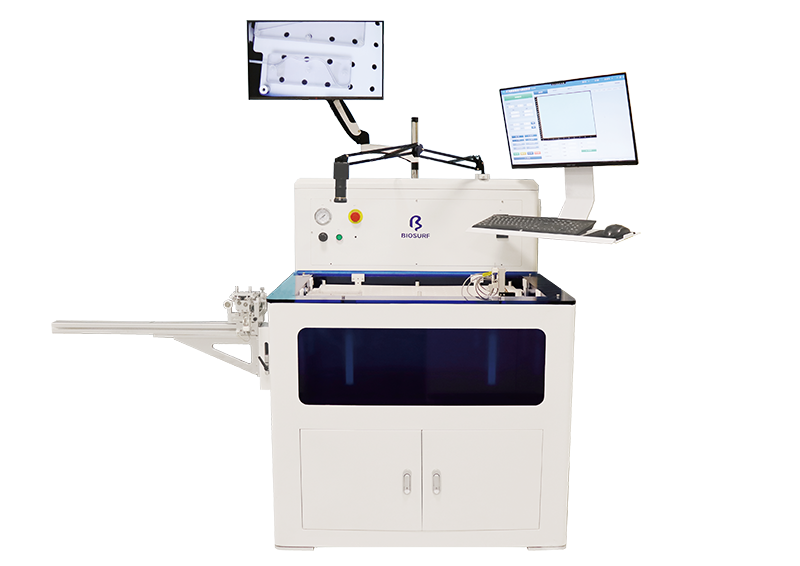

Simulates and evaluates the in-vessel performance of interventional devices pushability, trackability, pullback force, and torque response (including torque transmission efficiency and rotation angle). The system also assesses the lubricity and coating adhesion of catheters and guidewires.
Equipment Specifications
Dimensions (L x W x H): 1.8m x 1.0m x1.6m
Axial Force Range (Push/Pull): 0 - 30 N (optional, higher ranges available)
Linear Speed: 0 - 6 m/min
Torque Range: 0-0.5 N.m (optional)
Key Features
Programmable test protocols allow for user-defined advancement and retraction steps and speeds.
Features a low-friction sliding table and includes overload protection for the force sensors.
Real-time display of displacement, force, and torque curves with peak force identification. Software supports comparative analysis of historical data sets.
Utilizes high-precision sensors. Offers both automatic and manual testing modes, modular functionality, and customizable vascular models.
Custom engineering services available to meet specific user requirements.
