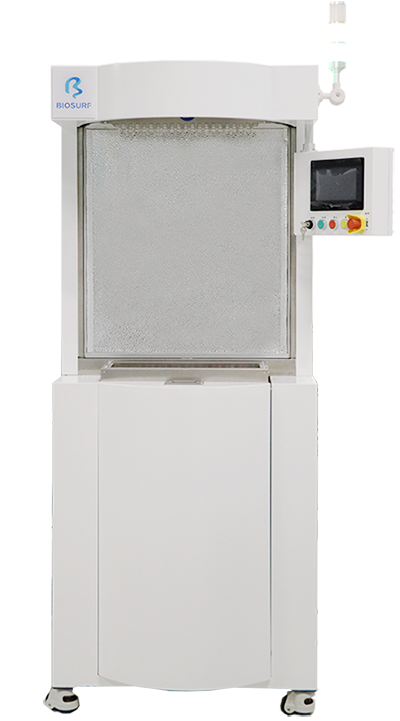

UV-Curing Coating Machine Series MIA
Preferred for High-Production Coating Requirements of Short Catheters/Guidewires on a Single Machine
Product Introduction
The UV-Curing Coating Machine Series MIA is independently R&D and designed by BIOSURF, used for the coating production of medical catheters/guidewires through the dip coating-UV curing process on their outer surfaces. The equipment has the advantages of stable performance, ultra-high production capacity and easy operation, especially suitable for the high-production coating requirements of short catheters/guidewires on a single machine.
Equipment Parameters
Application Scope: All types of catheters and guidewires Equipment Height: 2100 mm Applicable Product Length: 0-670 mm Produceable Coating Length: 0-635 mm Batch Loading Capacity: 40 pieces Functions: Imported customized light source, dip coating-UV curing process, real-time temperature and humidity monitoring, support for light intensity measurement, support for section-wise speed increase, automatic/manual mode switching, single-layer/double-layer coating process switching
Equipment Features
Patented rotating station supporting dip-coating and UV curing procedures at the same time to achieve high productivity
Separated dipping and curing chambers for maximizing the production efficiency
Stable and uniform temperature inside the curing chamber
Uniform light intensity in the irradiation area, adjustable light intensity value, effectively ensuring coating quality
Application Product Examples
Catheters (PVC/TPU/silicone/latex), ureteral stents, drainage tubes, ureteral sheaths/dilators, short guidewires, short catheter sheaths, endotracheal tubes, central venous catheters, etc.
